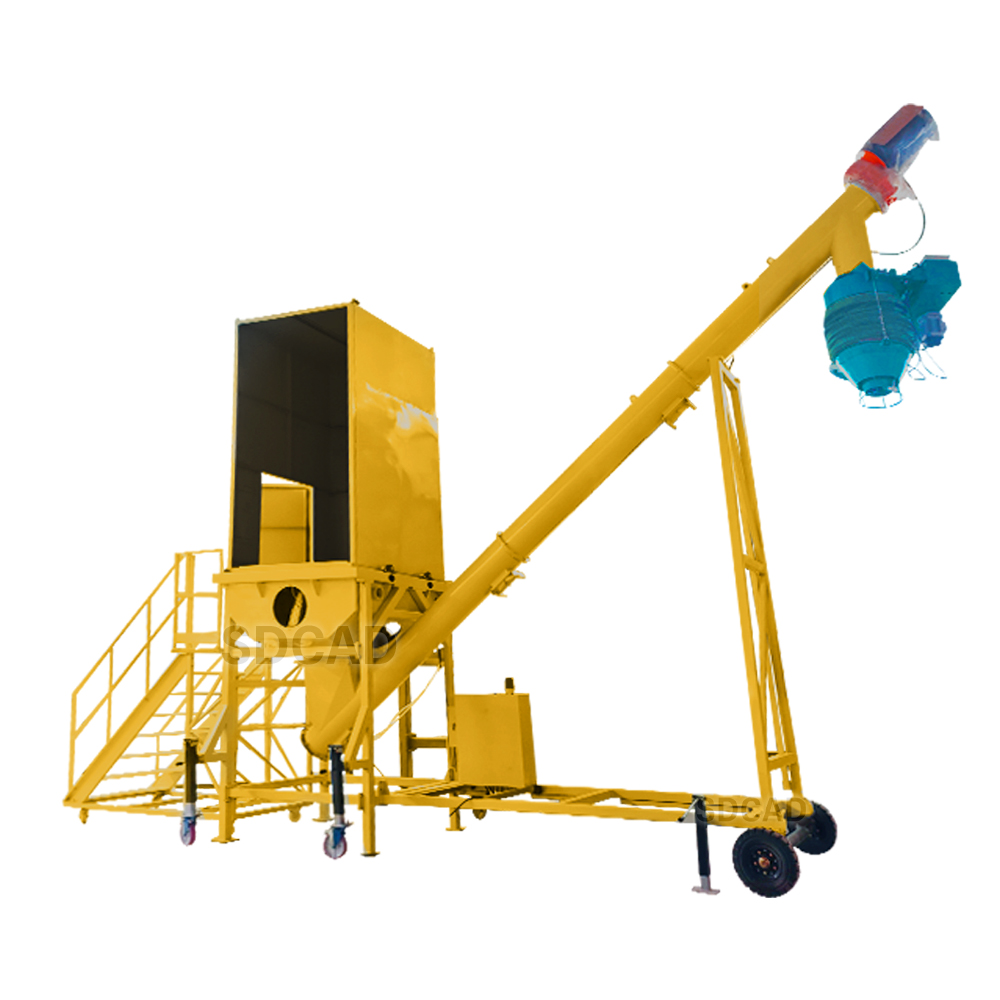

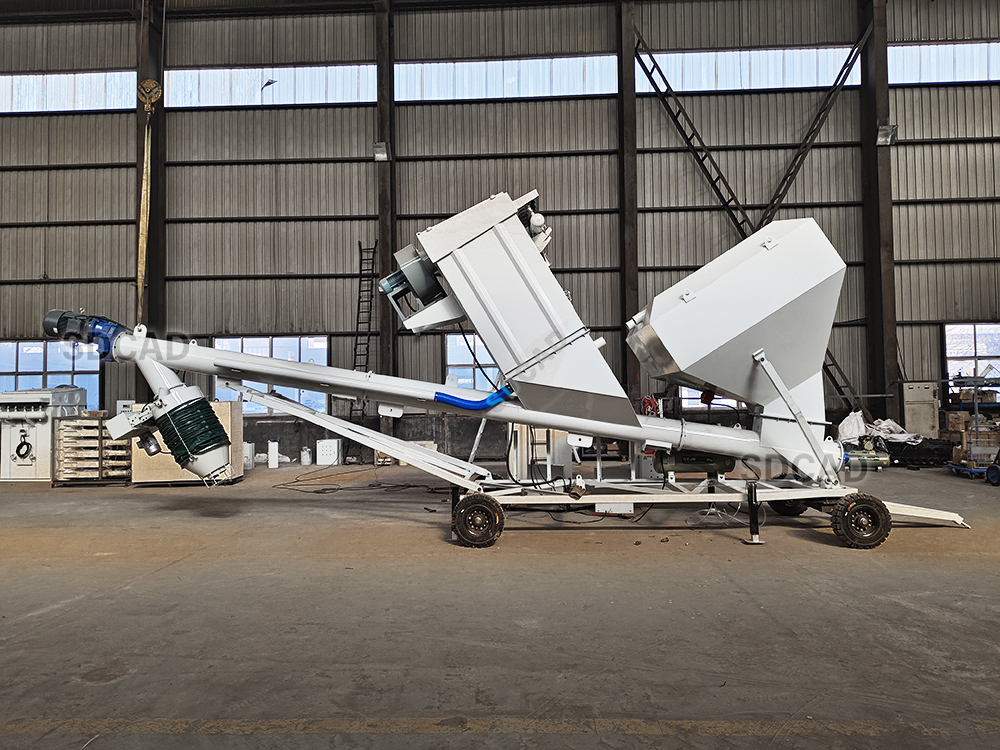

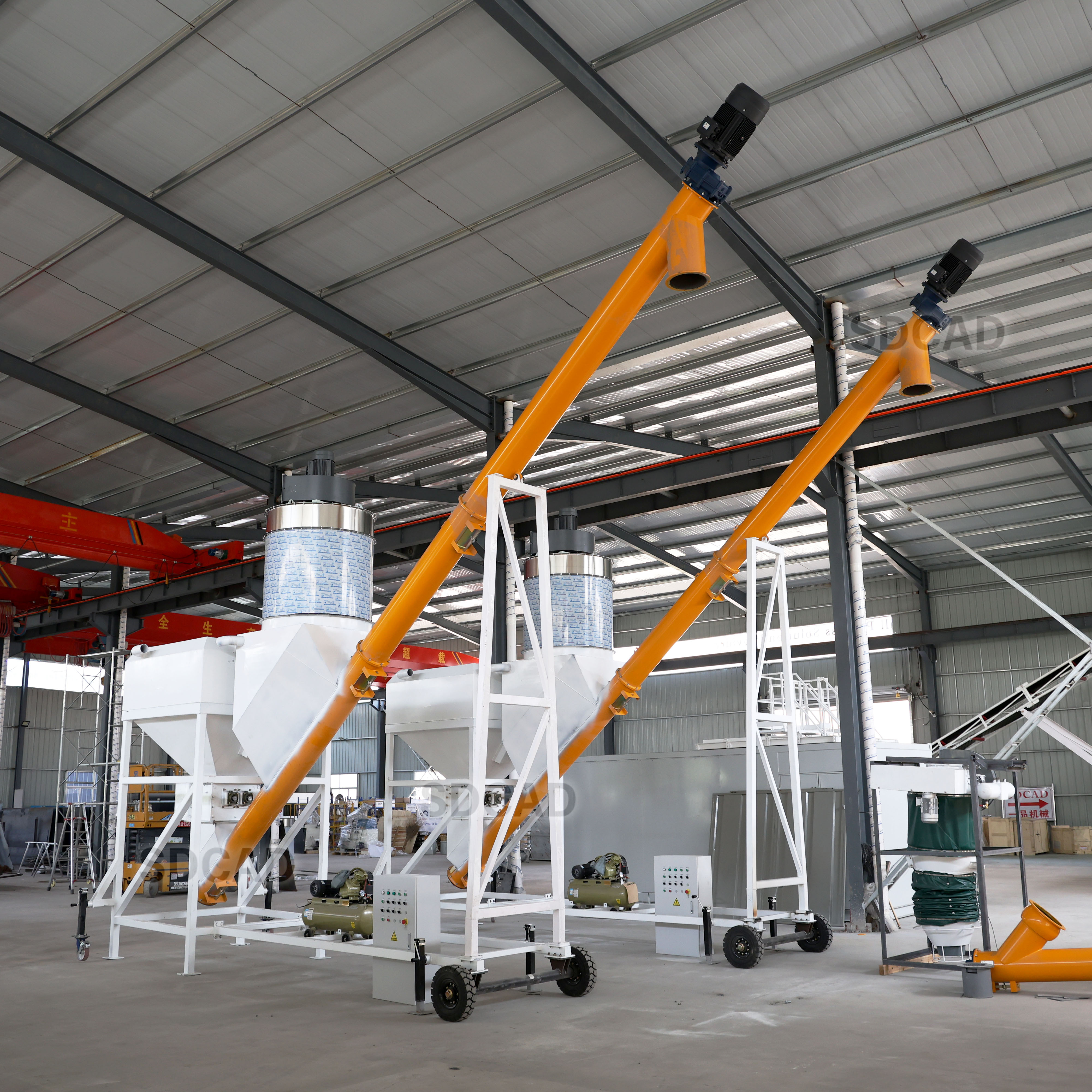

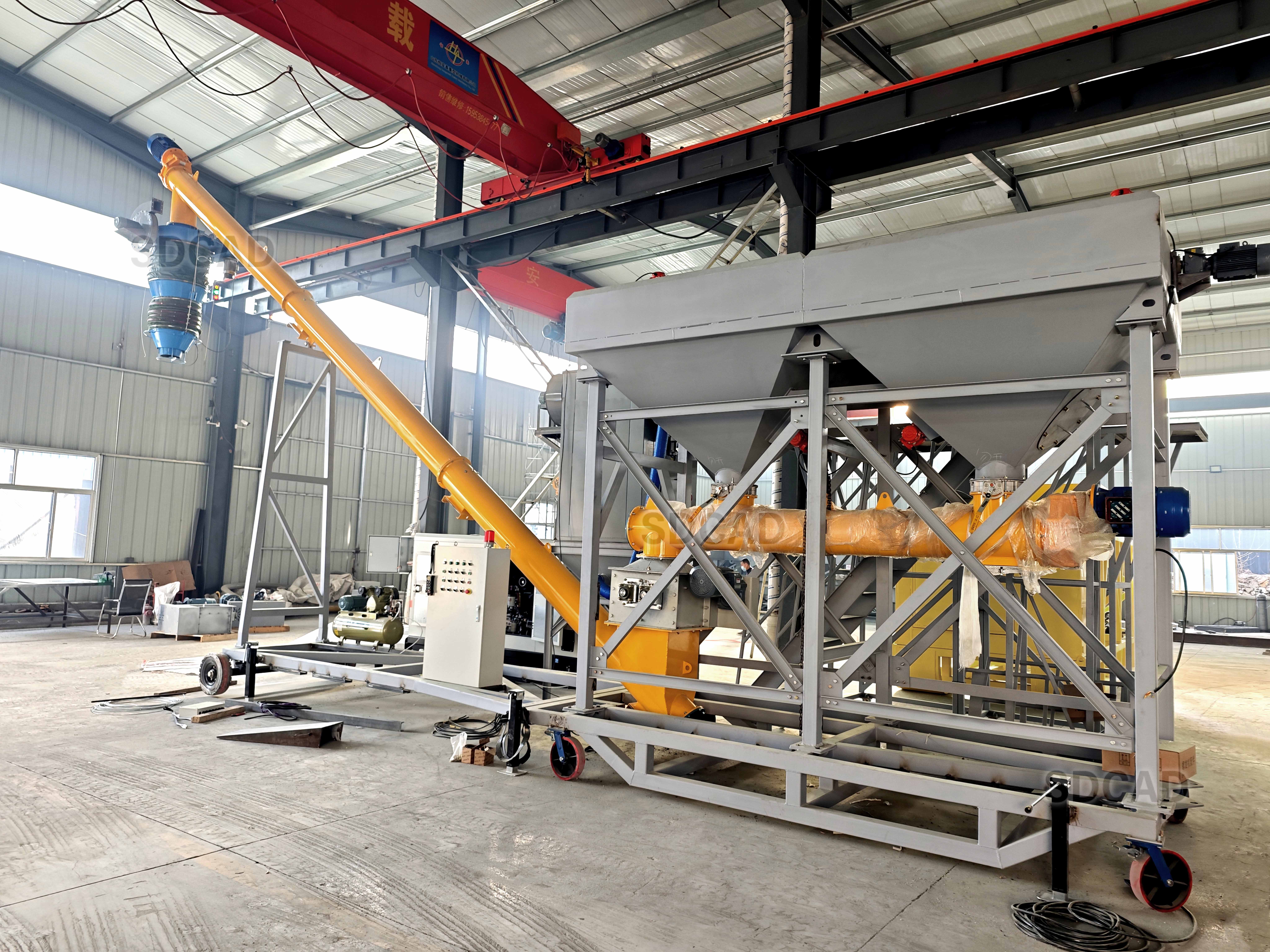

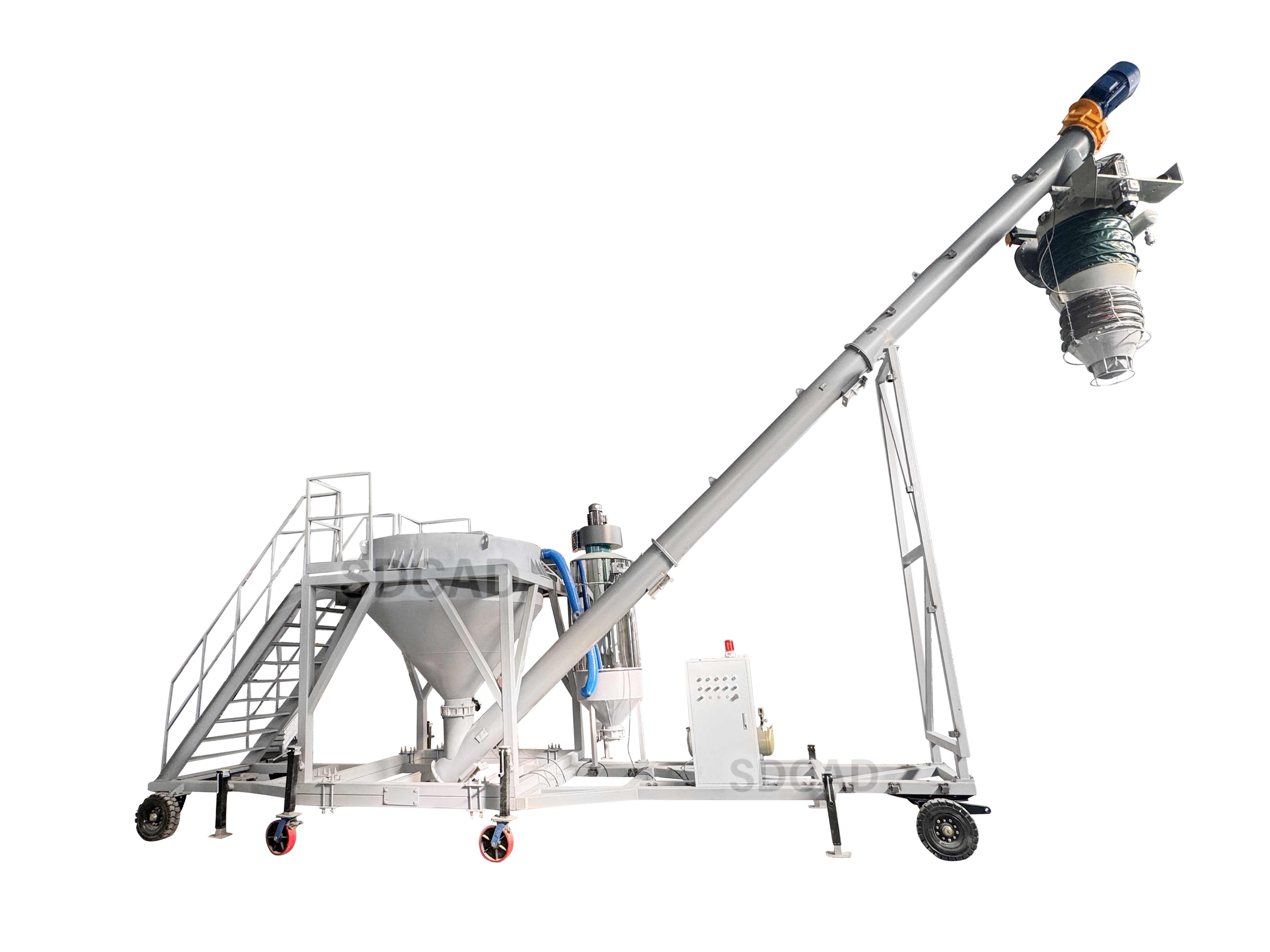

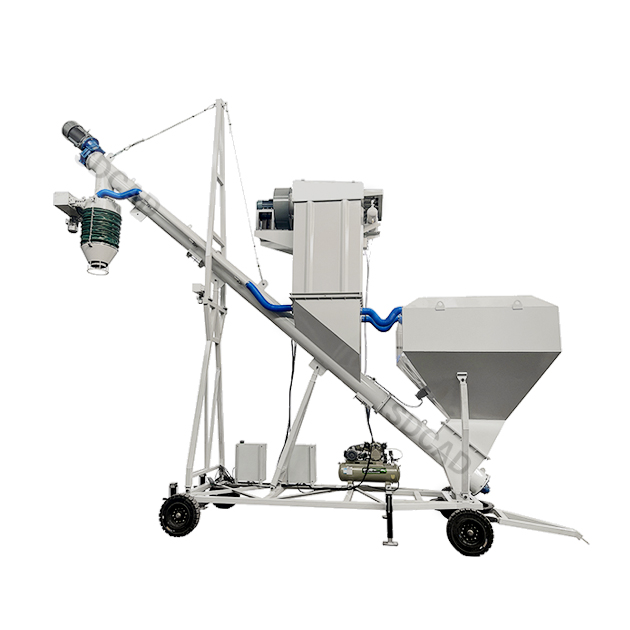

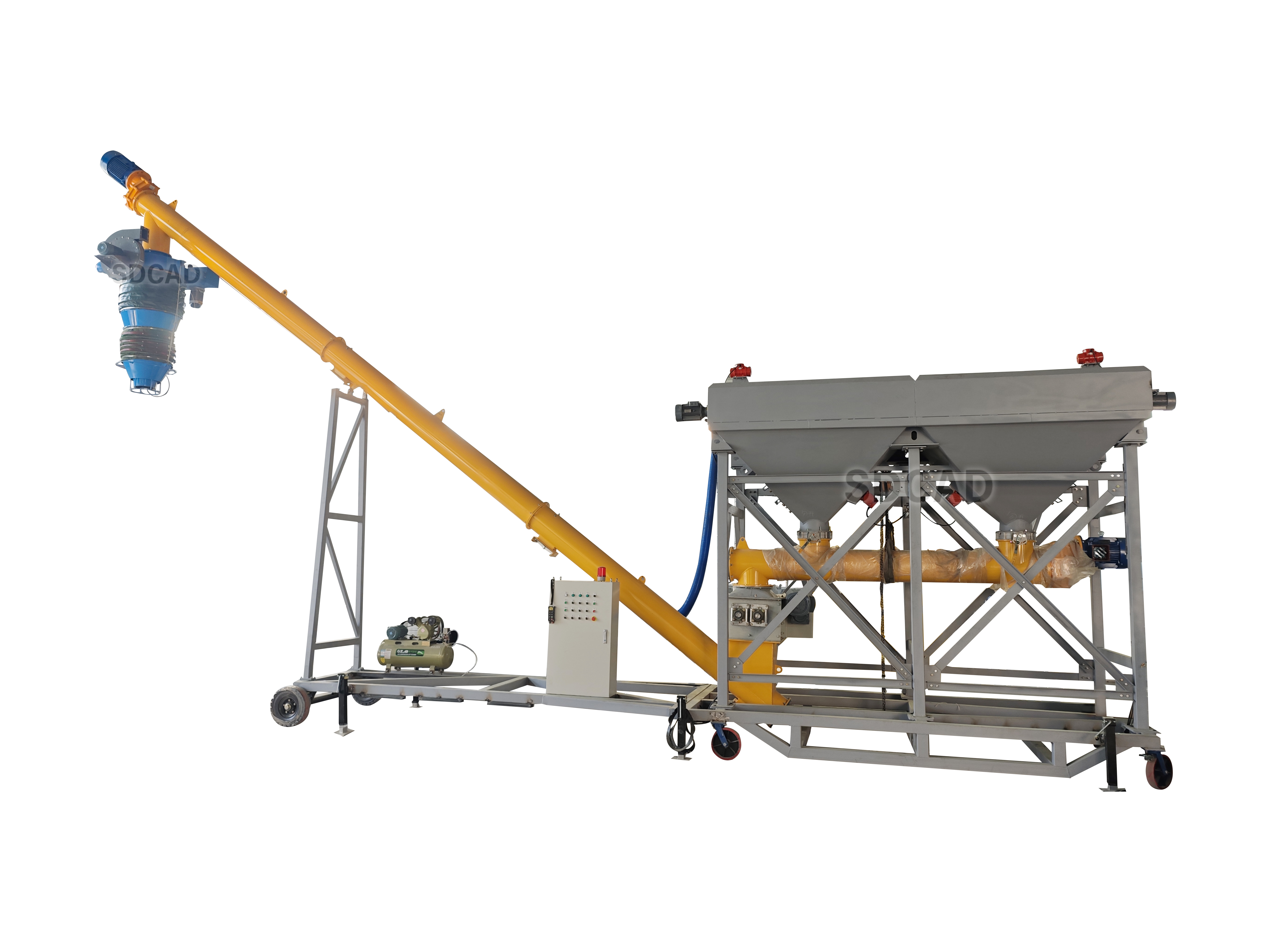

Mobile Bulk Truck Loading System

Introduction Mobile Bulk Truck Loading System, also known as bulk truck loader, mobile bulk truck loading system, big bag silo truck loader, bulk truck loading machine, is a machine for discharging bulk material or bagged material into a silo truck through in feeding hopper, conveyor and telescopic chute It can handle solid materials in different forms mainly granule and powder, especially good fluidity, loose non-viscous particles and powders, including cement, fly ash, plastic pellet, mineral powder

Description

Introduction Mobile Bulk Truck Loading System, also known as bulk truck loader, mobile bulk truck loading system, big bag silo truck loader, bulk truck loading machine, is a machine for discharging bulk material or bagged material into a silo truck through in feeding hopper, conveyor and telescopic chute. It can handle solid materials in different forms mainly granule and powder, especially good fluidity, loose non-viscous particles and powders, including cement, fly ash, plastic pellet, mineral powder.

Mobile Bulk Truck Loader working with Screw Conveyor , Dust Collector with fan, Bulk feeding bellow, Control system and air compressor.

Advantages

Mobile: Wheeled mobile chassis that allows easy transportation of the system to the desired location.
Functional: Compact form can be moved easily from one place to another.

Efficient: The system can transfer large quantities of material in a short time.
Easy to Operate: Very few operators are necessary to handle both discharging and loading trucks/tankers at the same time.
Remote Control Available: Operator can control the whole operation with a remote controller.
Reliable: It can work a long time without any need for maintenance, which enables you to save money.
Suitable for Uneven Ground: The screw jack leveling legs can be adjusted to any place to place the system.
Flexible: The loading bellow can be extended and retracted concerning the height of the bulk truck.
Environmental Friendly: Built-in dust collection system captures dust and prevents material loss.
Robust Design: The system will work for continuous long hours without failure.

Technical Specifications

Item	Specifications	Item	Specifications
Hopper	3m³	Bulk cement loader flexible range	1.2m The length can be customized
Delivery Capacity	50t/h	Dust collect	Configuration fan is 4Kw
Screw Conveyor	323*10m	Wheels	Enlarge the car tires and widen the brackets
Filtration area	24m²	Filtration efficiency	>99.9%
Wind capacity	2400m³/h	Compressed air	4-6 bar
Cleaning method	Pulse air-jet cleaningcontinuous working	Fan	4KW
Noise	＜75dB	Model	Square type
