Scraper conveyor

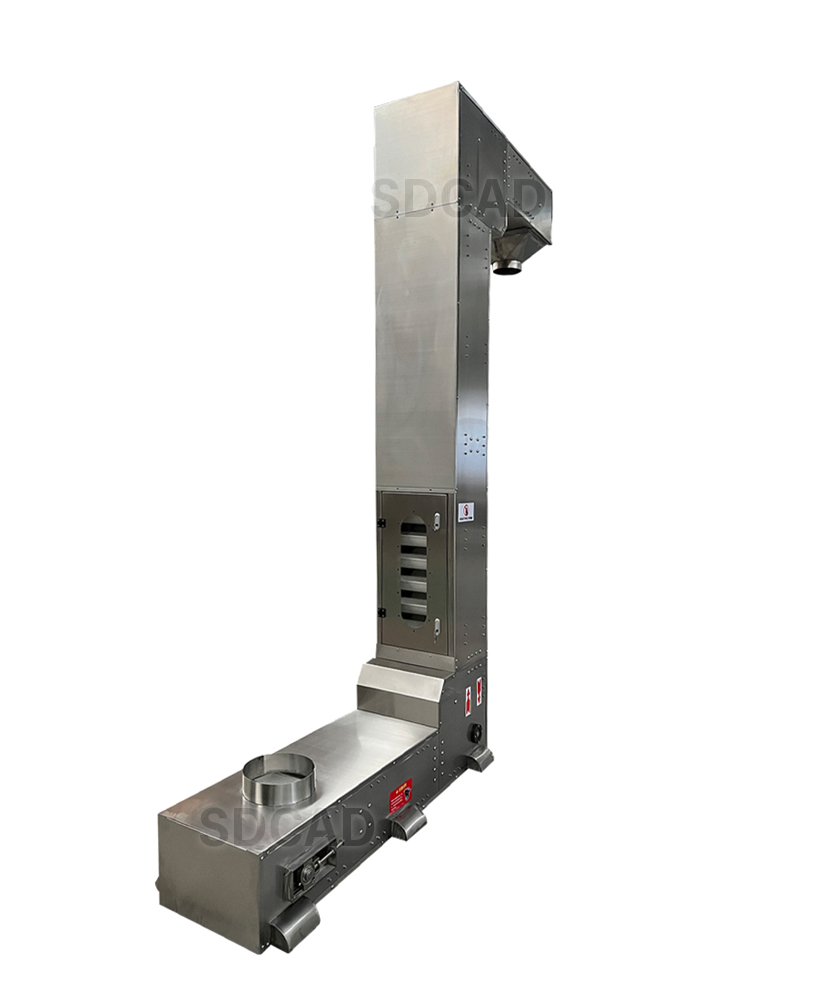

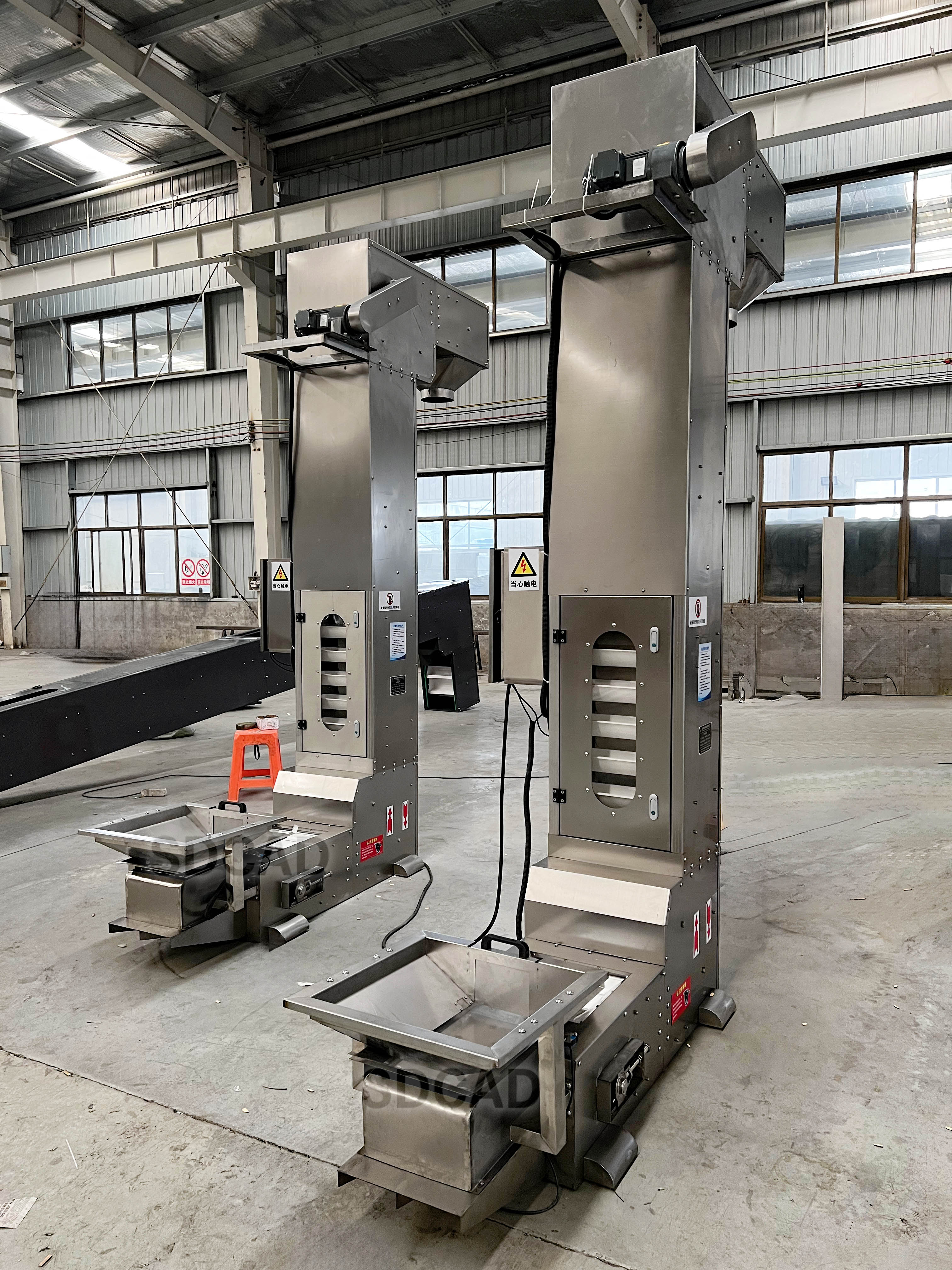

Equipment Introduction
The main structure and components of various types of scraper conveyors are basically the same, consisting of three parts: the head, the middle part, and the tail part.
In addition, there are auxiliary components such as hydraulic jack devices for pushing conveyors and chain tensioners for chain tightening. The head part is composed of a head frame, an electric motor, a hydraulic coupler, a reducer, a sprocket, and other components. The middle part is composed of transition groove, middle groove, chain, scraper, etc. The tail is a device for the return of the scraper chain. The tail of the heavy-duty scraper conveyor is also equipped with a power transmission device, which is called the upper head and the lower head according to the installation position.
classification
According to the layout and structure of the scraper conveyor chute, it can be divided into two types: parallel type and overlapping type. According to the number and layout of chains, it can be divided into four types: single chain, double chain, double center chain, and three chain.

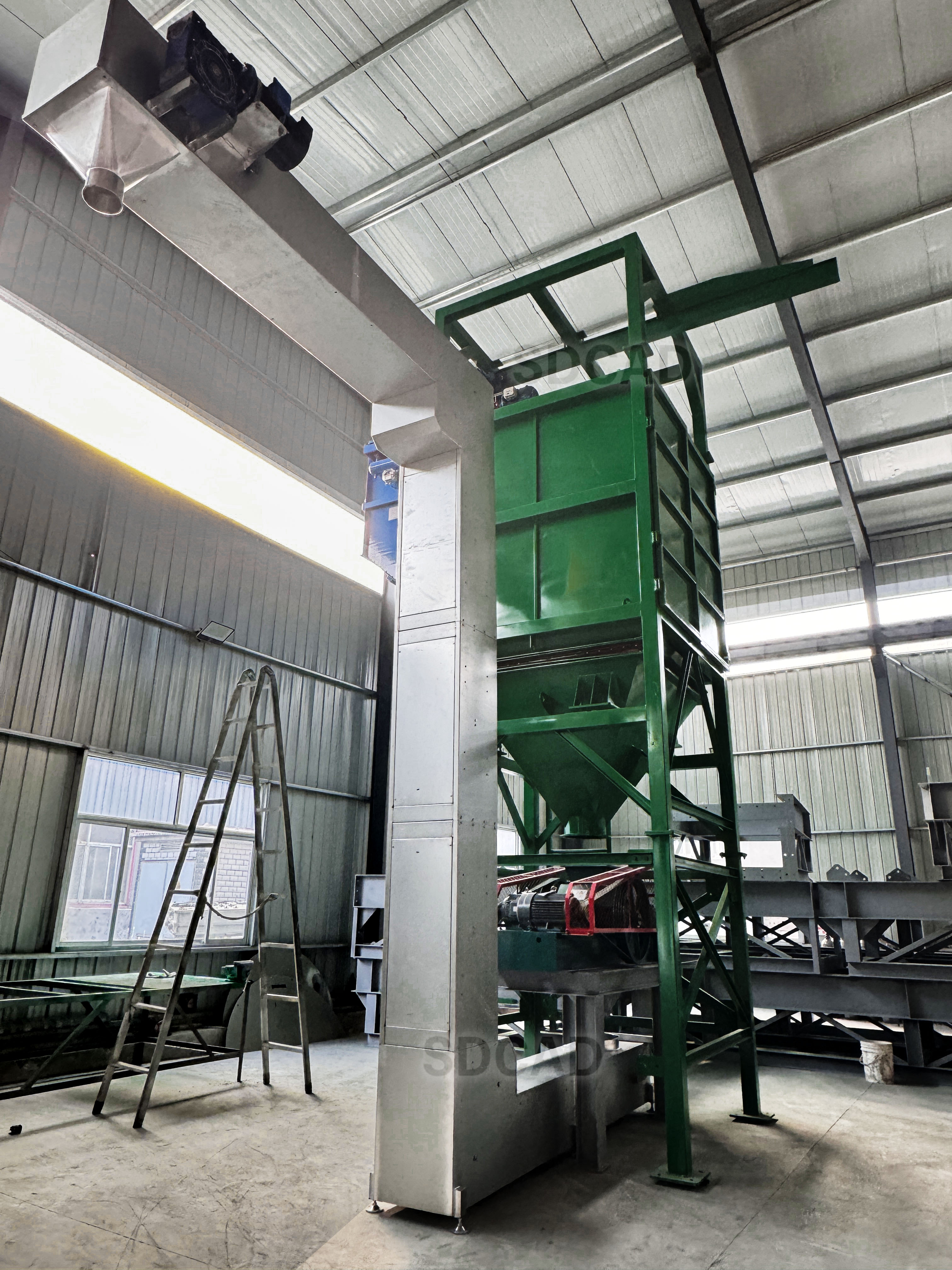

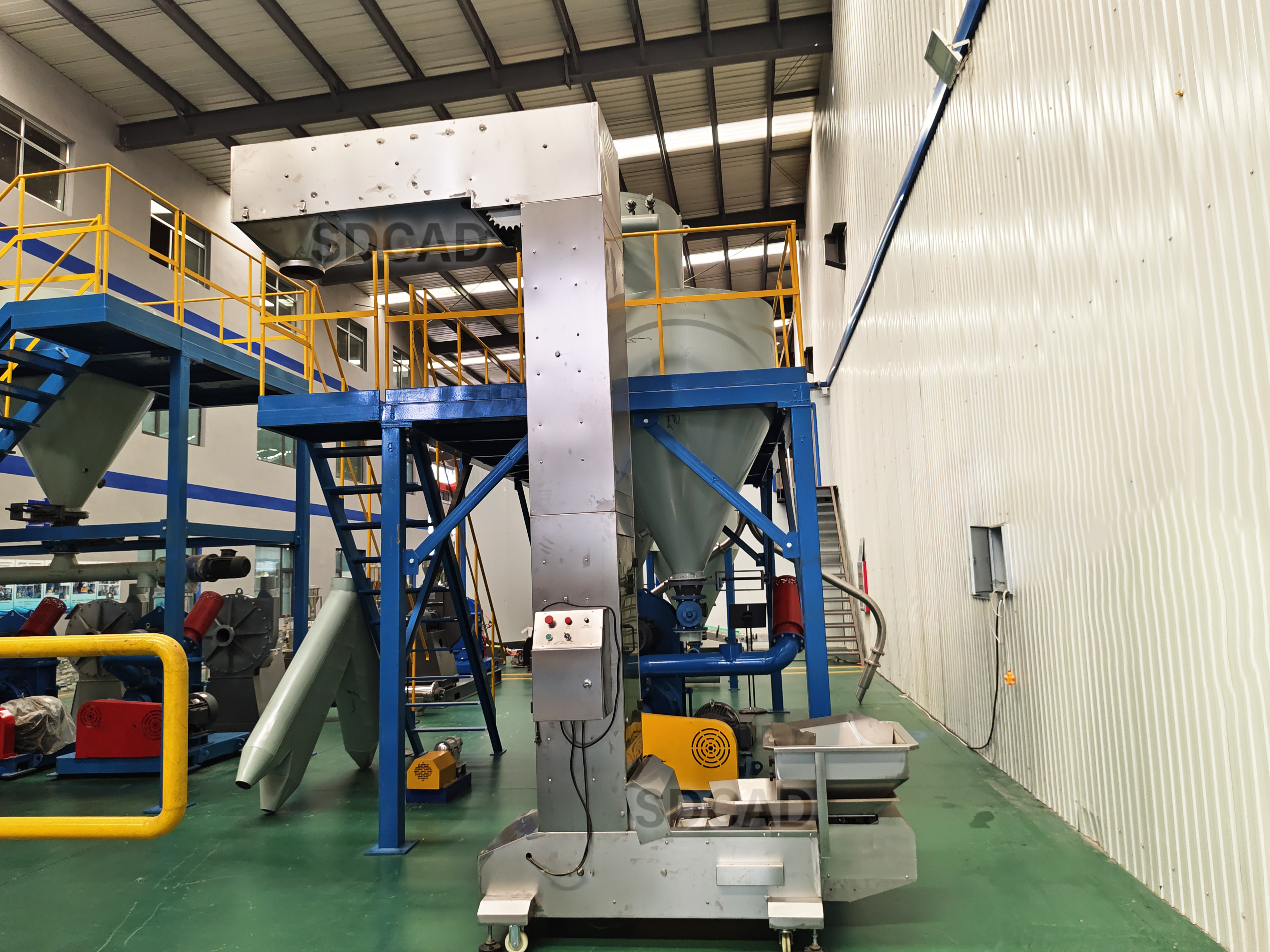

practical application
The scraper conveyor can be used for horizontal transportation as well as inclined transportation. When transporting upward along a slope, the inclination angle of the coal seam shall not exceed 25 °, and when transporting downward, the inclination angle shall not exceed 20 °. When the inclination angle of the coal seam is large, anti-skid devices shall be installed. The flexible scraper conveyor allows 2 ° to 4 ° bending in the horizontal and vertical directions.
working principle
The working principle of a scraper conveyor is to use an open chute as a bearing member for coal, gangue, or materials, and fix the scraper on a chain (forming a scraper chain) as a traction component. When the head transmission is started, the sprocket on the head shaft of the belt conveyor rotates, causing the scraper chain to circulate and move the belt material along the chute until it reaches the head for unloading. The scraper chain operates in a stepless closed cycle around the chain wheel to complete the transportation of materials.
Advantages and disadvantages
advantage
1. Solid structure. Can withstand the impact, collision, impact, pressure, and other external forces of coal, gangue, or other materials.
2. It can adapt to the needs of uneven and curved floor of coal mining faces, and can withstand vertical or horizontal bending.
3. Low body, easy to install.
4. It can also serve as a track for the operation of coal mining machines.
5. Reversible operation for handling bottom chain accidents.
6. It can be used as a fulcrum for the front section of the hydraulic support.
7. Simple structure, feeding or discharging at any point in the conveying length.
8. The enclosure is sealed to prevent dust from flying and polluting the environment when transporting materials.
9. When the tail is not provided with a casing and the scraper is inserted into the material pile, the material can be retrieved and transported by itself.
shortcoming
1. The no-load power consumption is relatively large, accounting for about 30% of the total power.
2. It is not suitable for long-distance transportation.
3. Improper adjustment can easily lead to chain dropping and jumping accidents.
4. Consumes a lot of steel. High cost.
