Bellow Feeding Machine
Description

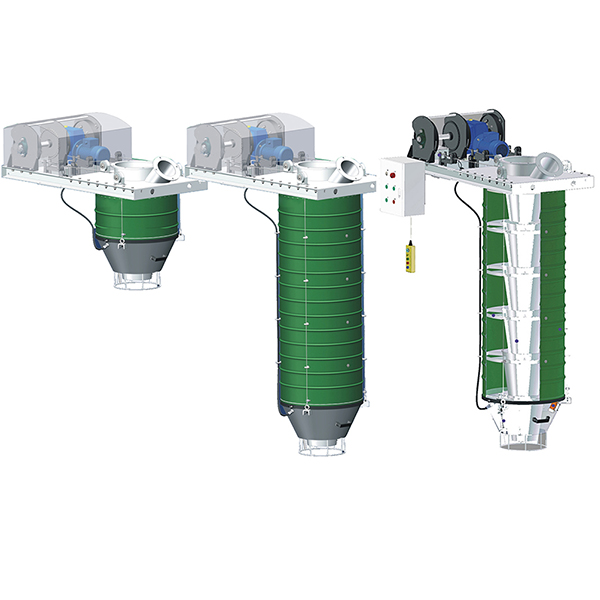

Clinker bulk machine
Product Description
The clinker bulk machine is a device that automatically transports clinker (≤ 50mm) from the warehouse to the clinker bulk carrier. The bulk equipment for cement clinker at the bottom of the silo is mainly composed of manual rod valves, electric fan valves, winch devices, telescopic discharge devices, dust collection hoses, capacitive limit switches, and electrical control systems.
working principle
When the transportation tool enters the position, open the rod valve to determine the corresponding number of rods. Press and hold the "lowering button" on the control cabinet. After the unloading head is in place, the power supply of the lifting motor will be automatically disconnected. Press the "loading button" to enter the unloading state, and the auxiliary equipment will start working accordingly. The dust generated during unloading passes through the feed hopper and enters the dust collector through the telescopic dust collection hose for purification. When the material in the lower head is full, the unloading head will raise while giving an alarm. The rising distance must be set before loading. If the rising distance is 1 meter, adjust the time of the time relay to T=1/V. During the rising process, loading is always in progress. When the lower feed head is full, repeat the above action. After reaching the full feed position, press the stop button to reverse brake the electric vibrator, or close the fan valve to stop feeding, and other equipment will stop working accordingly. After parking, press the up button to let the lower hopper leave the material for a certain distance, ensure the movement of the transportation tool, and then align it with the second unloading station. Until the entire silo is filled.

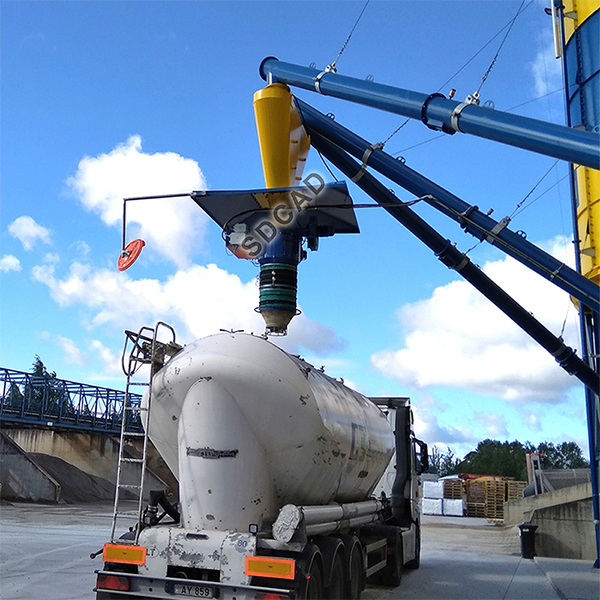

Warehouse bottom bulk machine
Product Description
The cement bulk machine at the bottom of the silo is mainly used for bulk cement and other powdery materials. The bulk machine at the bottom of the warehouse is installed on the ground for loading canned containers such as cars and trains. It is mainly composed of "discharge gate", "conveying chute", "elbow", "discharge pipe", "bulk machine", "dust collector", "chute fan", etc. The part inside the cement silo is suspended by a bracket inside the cement silo and placed at a slope of 10% to fluidize the cement powder in the cement silo (this high-pressure compressed air is supplied by the user with a Roots blower or accessed by the compressed air header in the factory after decompression). The "discharge connecting slot" and "conveying chute" are connected outside the cement silo in the discharge sequence and placed at a slope of 10%. They are opened during normal use. The "discharge gate" is used to control the cement discharge state of the bulk machine during loading; The "chute fan" is used to fluidize the cement material in the conveying chute. The bulk loader is its main equipment, and its blanking head has a telescopic length of 1.6 meters to meet the loading requirements of different vehicle types.

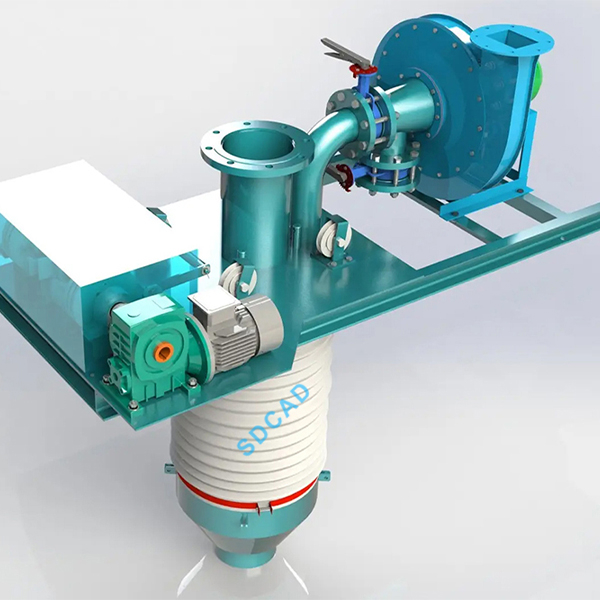

Warehouse side bulk machine
Product Description
The silo side cement bulk machine is mainly used for bulk cement and other powdery materials. The silo side bulk loader is installed on the side of the cement silo for loading canned containers such as cars and trains. It is mainly composed of "discharge gate", "conveying chute", "elbow", "discharge pipe", "bulk machine", "dust collector", "chute fan", etc. The part inside the cement silo is suspended by a bracket inside the cement silo and placed at a slope of 10% to fluidize the cement powder in the cement silo (this high-pressure compressed air is supplied by the user with a Roots blower or accessed by the compressed air header in the factory after decompression). The "discharge connecting slot" and "conveying chute" are connected outside the cement silo in the discharge sequence and placed at a slope of 10%. They are opened during normal use. The "discharge gate" is used to control the cement discharge state of the bulk machine during loading; The "chute fan" is used to fluidize the cement material in the conveying chute. The bulk loader is its main equipment, and its blanking head has a telescopic length of 1.6 meters to meet the loading requirements of different vehicle types.
Product Description
The clinker bulk machine is a device that automatically transports clinker (≤ 50mm) from the warehouse to the clinker bulk carrier. The bulk equipment for cement clinker at the bottom of the silo is mainly composed of manual rod valves, electric fan valves, winch devices, telescopic discharge devices, dust collection hoses, capacitive limit switches, and electrical control systems.
working principle
When the transportation tool enters the position, open the rod valve to determine the corresponding number of rods. Press and hold the "lowering button" on the control cabinet. After the unloading head is in place, the power supply of the lifting motor will be automatically disconnected. Press the "loading button" to enter the unloading state, and the auxiliary equipment will start working accordingly. The dust generated during unloading passes through the feed hopper and enters the dust collector through the telescopic dust collection hose for purification. When the material in the lower head is full, the unloading head will raise while giving an alarm. The rising distance must be set before loading. If the rising distance is 1 meter, adjust the time of the time relay to T=1/V. During the rising process, loading is always in progress. When the lower feed head is full, repeat the above action. After reaching the full feed position, press the stop button to reverse brake the electric vibrator, or close the fan valve to stop feeding, and other equipment will stop working accordingly. After parking, press the up button to let the lower hopper leave the material for a certain distance, ensure the movement of the transportation tool, and then align it with the second unloading station. Until the entire silo is filled.
Warehouse bottom bulk machine
Product Description
The cement bulk machine at the bottom of the silo is mainly used for bulk cement and other powdery materials. The bulk machine at the bottom of the warehouse is installed on the ground for loading canned containers such as cars and trains. It is mainly composed of "discharge gate", "conveying chute", "elbow", "discharge pipe", "bulk machine", "dust collector", "chute fan", etc. The part inside the cement silo is suspended by a bracket inside the cement silo and placed at a slope of 10% to fluidize the cement powder in the cement silo (this high-pressure compressed air is supplied by the user with a Roots blower or accessed by the compressed air header in the factory after decompression). The "discharge connecting slot" and "conveying chute" are connected outside the cement silo in the discharge sequence and placed at a slope of 10%. They are opened during normal use. The "discharge gate" is used to control the cement discharge state of the bulk machine during loading; The "chute fan" is used to fluidize the cement material in the conveying chute. The bulk loader is its main equipment, and its blanking head has a telescopic length of 1.6 meters to meet the loading requirements of different vehicle types.
Warehouse side bulk machine
Product Description
The silo side cement bulk machine is mainly used for bulk cement and other powdery materials. The silo side bulk loader is installed on the side of the cement silo for loading canned containers such as cars and trains. It is mainly composed of "discharge gate", "conveying chute", "elbow", "discharge pipe", "bulk machine", "dust collector", "chute fan", etc. The part inside the cement silo is suspended by a bracket inside the cement silo and placed at a slope of 10% to fluidize the cement powder in the cement silo (this high-pressure compressed air is supplied by the user with a Roots blower or accessed by the compressed air header in the factory after decompression). The "discharge connecting slot" and "conveying chute" are connected outside the cement silo in the discharge sequence and placed at a slope of 10%. They are opened during normal use. The "discharge gate" is used to control the cement discharge state of the bulk machine during loading; The "chute fan" is used to fluidize the cement material in the conveying chute. The bulk loader is its main equipment, and its blanking head has a telescopic length of 1.6 meters to meet the loading requirements of different vehicle types.
