Galvanized Bolted Silo


DescriptionGalvanized silos are popular storage equipment made by hot-dip galvanizing process They have excellent c
Description

Description

Galvanized silos are popular storage equipment made by hot-dip galvanizing process. They have excellent corrosion resistance and durability. They are suitable for storage of industrial bulk materials such as cement, fly ash, mineral powder, etc. They are widely used in building materials, chemical industry and other industries. They have a strong structure, modular design,convenient installation, and can be assembled and disassembled quickly. The galvanized layer effectively resists moisture and corrosion and prolongs the service life. The good sealing performance can effectively prevent moisture and leakage to ensure the quality of materials. At the same time, the maintenance cost is low, economical and environmentally friendly, which is an ideal solution for industrial bulk material storage.



Specifications


Volume
Diameter
Silo body height
Discharge height
Pieces each layer
Weight
50t
3160mm
4260mm
Design Customization
4
4.5T
100t
3160mm
8700mm
Design Customization
4
6T
150t
3600mm
13000mm
Design Customization
4
9T
200t
4000mm
8700mm
Design Customization
5
12T
300t
4500mm
8700mm
Design Customization
6
17T
500t
5300mm
7300mm
Design Customization
8
21T
600t
6800mm
8700mm
Design Customization
8
28T
800t
6800mm
10100mm
Design Customization
8
43T
1500t
10000mm
13200mm
Design Customization
8
56T
2000t
10000mm
18000mm
Design Customization
10
150T
2500t
15000mm
20000mm
Design Customization
12
200T
3000t
15000mm
22000mm
Design Customization
16
250T



Galvanizing process


1. Pretreatment (surface cleaning)
Purpose: Remove organic matter such as grease and cutting fluid.
Detection: Verify cleanliness by continuous water film method (no water interruption on the surface).

2. Core process of hot-dip galvanizing
Zinc liquid configuration
Composition: 99.995% pure zinc or zinc alloy
Temperature: 445-465℃ (optimal reaction temperature range).
Molten pool management: Regularly remove slag (Fe-Zn alloy slag) and control aluminum content ≤0.02% (to prevent overreaction).

3. Post-treatment and quality inspection
Cooling
Method: Water cooling (fast) or air cooling (natural).
Note: Deionized water is required for water cooling to prevent corrosion of the zinc layer.

4. Quality inspection
Hammer test: no peeling.
Appearance: no defects such as missing plating, sagging, zinc nodules, etc.

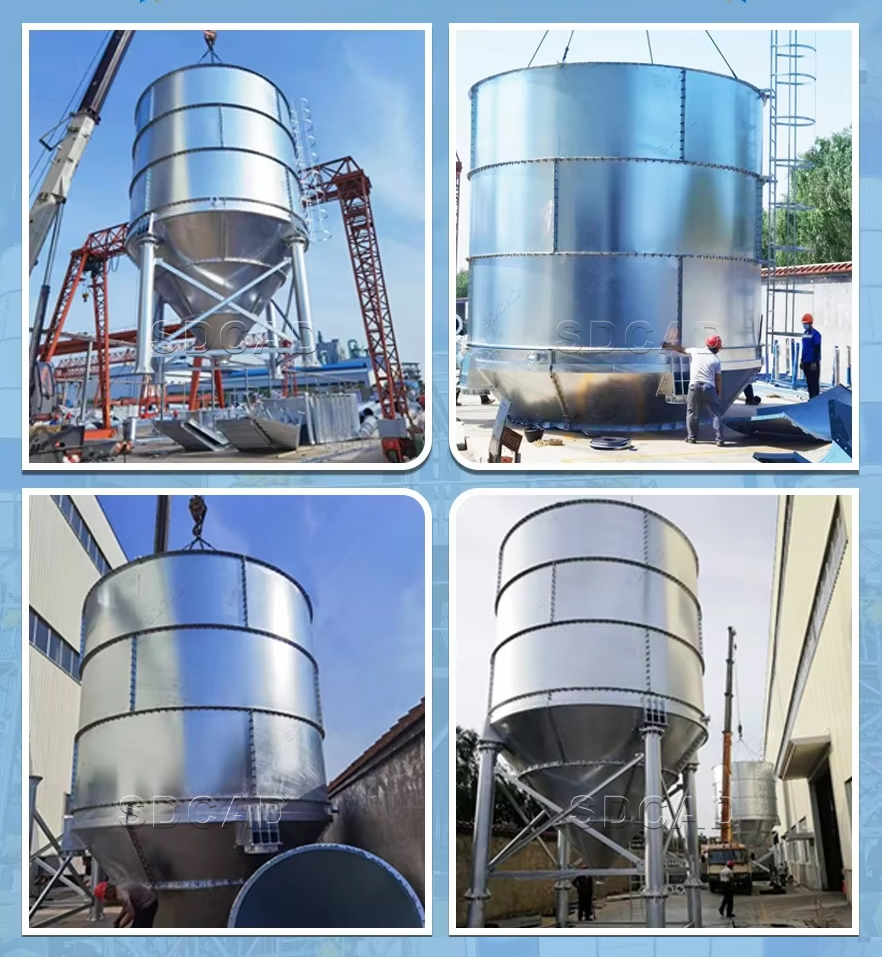

Installation Process

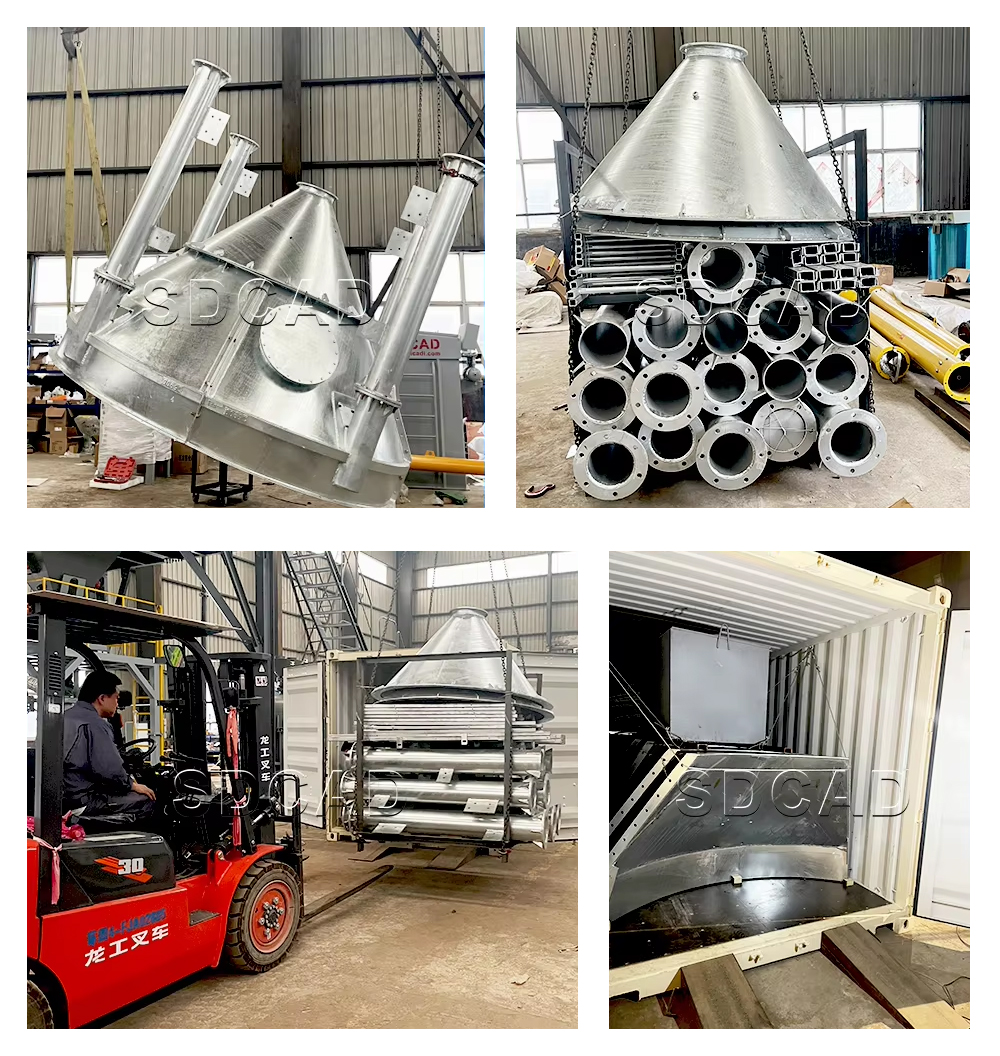

Delivery Shot
